Step Platform for U-Arm System

Clear Image Devices


Request a Quote

SKU: CD-24701 Categories: ,

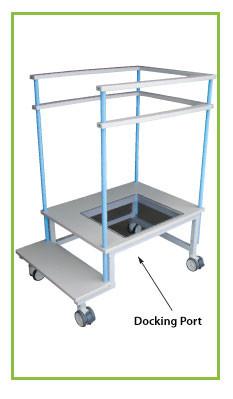

U-Arm Step Radiographic Positioner

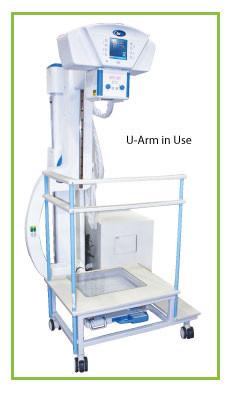

The design of the 2-Step Platform for U-Arm radiography permits patients to be positioned over a variety of U-Arm and fixed bucky digital radiography systems, including those made by Swissray, Sedecal, IMIX, IDC and more.

This unit is also available as a special order, customized to work with your CR cassettes and DR panels – request a quote for this customization.

The U-Arm Step from Clear Image Devices is designed for easy capture of the highest quality weight-bearing lateral and AP foot images. This positioning device is ideal to satisfy the imaging needs of orthopaedic surgeons, sports medicine clinics, and general orthopedic practices. Optimal patient positioning also helps you acquire better diagnostic images for professional and collegiate sports physicians with fewer re-takes, thus reducing exposures to radiation.

Designed for patients weighing up to 500 lbs
Keeps patient’s foot as close to the image plate as possible to ensure high quality images
Easily portable with lockable casters

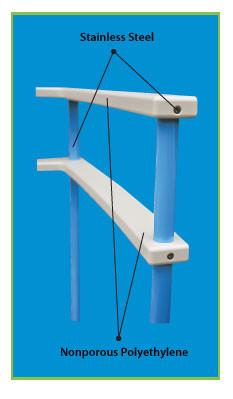

Easy to keep clean, the platform is made from germ-resistant, nonporous polyethylene and steel
Dimensions: Top Platform
Height: 18 in / 45 cm
Width: 28 in / 71 cm
Length: 32 in / 81 cm
Handle height: 53 in / 135 cm

Additional information

Weight 200 lbs
Dimensions 55 × 60 × 41 in
