Tilted Mobile Barrier with Reach Through Curtain



SKU: 683462 Category:


• Tilted design for better view
• Powder coated steel frame
• Acrylic impact panels, enclosed in a precision TIG welded frame for years of trouble-free service, completely enclosing the leaded glass panel for increased durability and safety
• 2 high-quality hospital grade locking casters
• 1.50mm LE opaque base covered in “Sintra” plastic for easy cleaning and durability
• Modular parts can be easily replaced, including the glass if needed.
• Ergonomical viewing area>
• Shipping worldwide by ground, air or sea freight

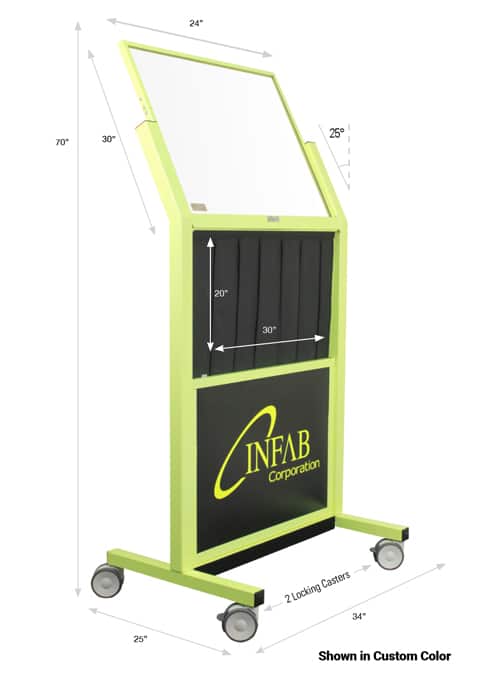

Dimensions: 70” H x 34½” W X 25” L

Glass Size: 24” H x 30” W

Glass Options: Lead: 2.0 mm Pb LE, Acrylic: .50 mm Pb LE

Curtain Size: 20” H x 30” W

Frame Colors: White, Grey, or Black. Custom colors available. Ships in standard white unless specified.

Frame Options: Powder Coated Steel, Stainless Steel (Upgrade)

Floor Curtain Color: Revolution Grey. Custom colors available.

Wheels: 4 swivel casters, 2 with brakes

Crate Size: 73” x 30” x 43”

Crate Weight: 355 lbs / 161.03 kg

Additional information

Weight 355 lbs
Dimensions 73 × 30 × 43 in
