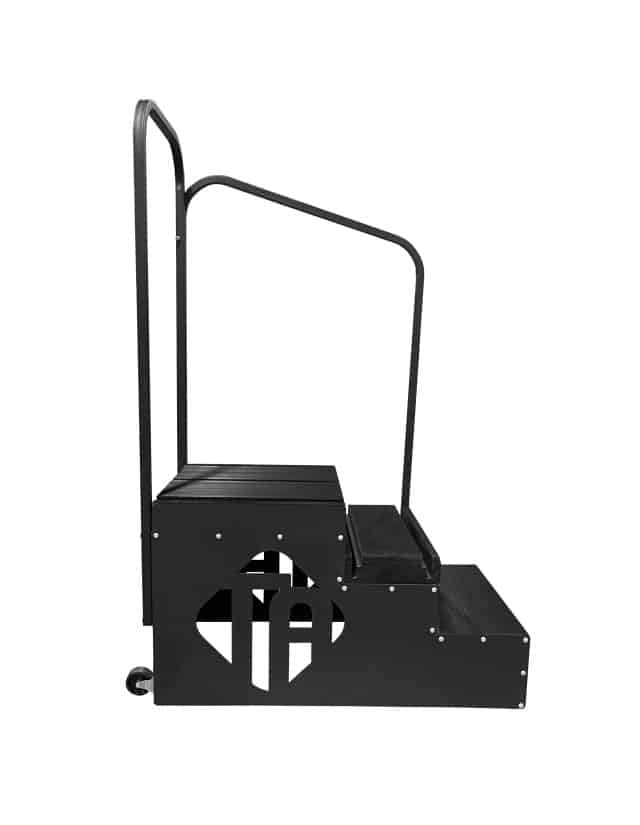

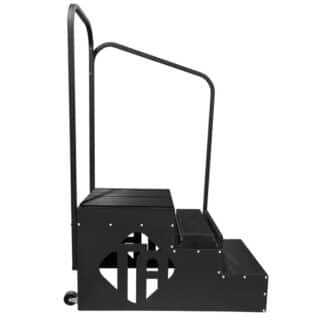

3-Step Tall Weight Bearing Stand – New Improved Top



Download Brochure


NEW Improved Top to accommodate various size of imaging receptors. Taller Weight Bearing Platform that allows for weight bearing imaging of the knees, ankles and feet. Three receptor slots on the top platform and two slots on the second platform. Third platform is 8.5″ tall for easy step up. Platforms are HD Coated cross-link closed cell foam for comfort and support. Channels are 11/16″ wide with 5/16″ inset for thinner receptors giving a total of 1″ wide width and are 4″ deep to accommodate cassettes and digital imaging receptors 52″ high safety rails provides for patient stability. Front handle is 15″ wide and side handle is 24″ wide.

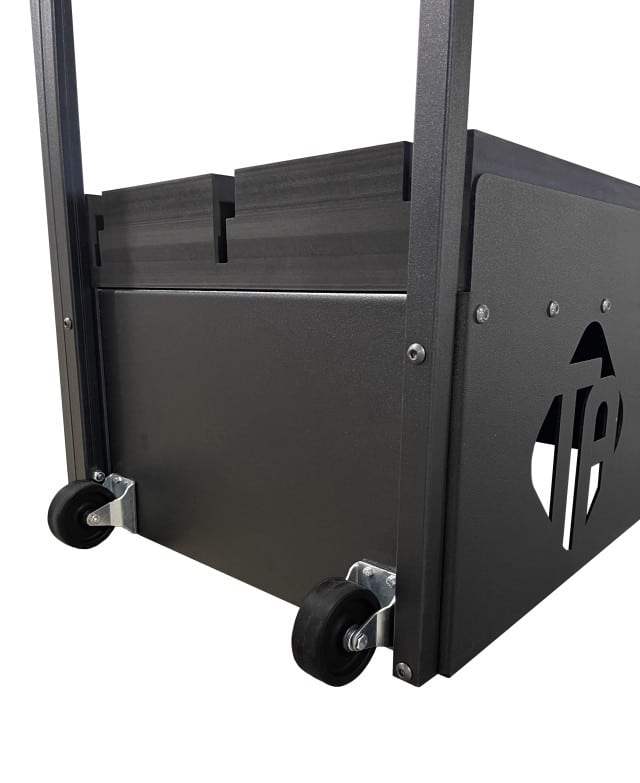

350 lb weight capacity. Platform heights: 8.5″ and 15.5″ and 22″. Top step is 20″ x 20″. Second and Third step are 20″ x 10″. All steel frame with 40″ x 20″ base. Rails and base are textured black. Two heavy duty casters in back for easy moving. Unit weighs only 92 lbs.

Estimated Lead Time: 30 Business Days



Additional information

Weight 158 lbs
Dimensions 59 × 22 × 43 in
