CoRE Labs Floor Mounted Suite

  • CoRE labs radiographic suites were designed from the beginning to work seamlessly for even the fastest throughput clinical environments.
  • With continuous SID display, rapid one hand positioning, optional SID automatic tracking, your clinic can be assured to care for a fast paced workload.
  • To speed installation, all suites come with onboard 24 VAC & 24 VDC power and wiring interfaces for ancillary equipment.
  • Their award winning user interface provides an easy to read, large backlit LCD display which shows SID and tube angulation.
  • With continuous SID display, one can achieve 40” SID with any table height allowing tall and short technicians alike to work in a height environment which is comfortable to them.
  • Operator fatigue is minimized through European & American engineered designs, providing less than 5 pounds necessary force, for movement in all directions

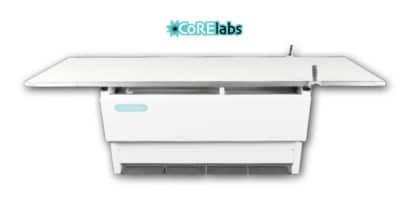

Atlas Elevating Table:


  • The atlas elevating table is designed as a “stand alone” system, consisting of plug-in cables and a single board interface compatible with all standard x-ray equipment.
  • The tabletop electromagnetic locks are released by applying pressure to foot pedals at the tables base.
  • The table height is adjustable to accommodate ambulatory, wheel chair, or gurney patients – Easier transfer is accomplished for both patient and operator.
  • With the atlas elevating table, the operator can easily and quietly elevate and accurately position a patient weighing up to 650 pounds.
  • Virtually silent motorized vertical movement is controlled by applying pressure to the foot pedals or optional hand controls.

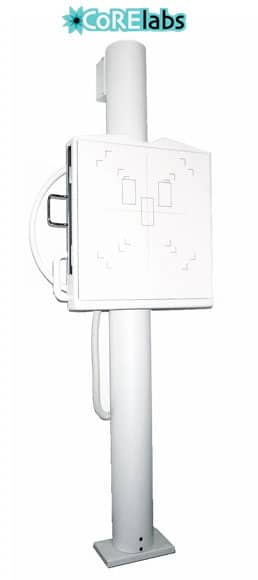

Flora Wall Bucky Stand 14″ x 17″: Flora Wall Bucky Stand CoRE Labs CMX

  • CoRE labs Wall Stands are manufactured to the same quality level as our tube stands and tables.
  • Flora is a fully counterbalanced unit and uses electronic positive locks.
  • The Flora accommodates Bucky’s, trays & DR systems from various manufacturers.

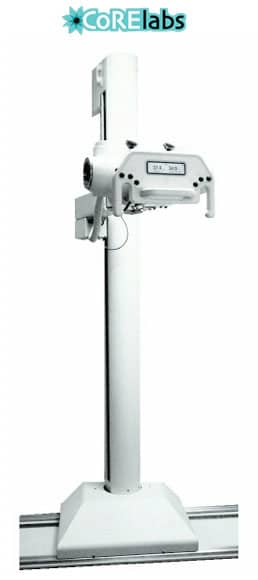

Triton Floor Mount Tube Stand: Triton Floor Mount Tube Stand CoRE Labs CMX

  • Extremely rigid steel & aluminum construction allows the Triton floor mount tube support to be freestanding.
  • The Triton is fully counterbalanced for easy positioning during radiographic procedures.
  • It uses the same world-class ergonomic LCD user interface as its ceiling mounted cousin.
  • Standard longitudinal travel is 7.5 feet.
  • Extended longitudinal travels are available. Transverse travel is 10” (+/- 5” from center) and vertical travel is 15” to 79” from a finished floor.
